NPH ISO насос Особенность

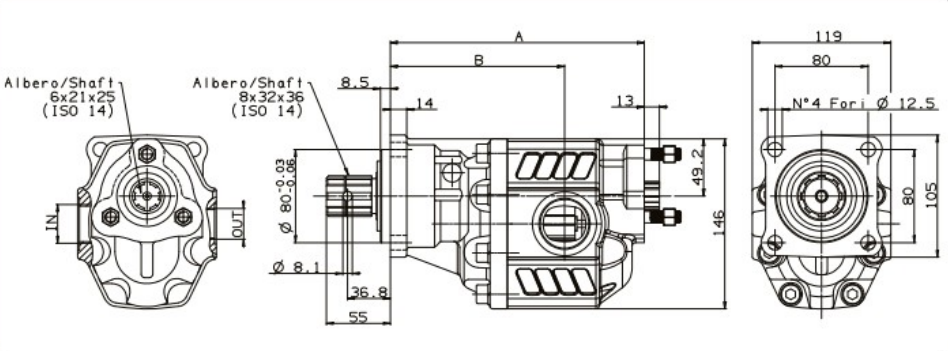

Размерная Диаграмма
| Tipo pompa Pump type | Rotazione Rotation | IN | OUT | A | B | Peso Weight | |
| Destro Rrght | Sinistra Left | ISO 228 | ISO 228 | mm | mm | Kg | |
| NPH-17 | 105-023-10179 | 105-023-10188 | G 1/2 | 180 | 119 | 10.6 | |
| NPH-22 | 105-023-10222 | 105-023-10231 | 183.5 | 121.5 | 11 | ||
| NPH-27 | 105-023-10277 | 105-023-10286 | 186 | 124 | 11.5 | ||
| NPH-34 | 105-02310348 | 105-023-10357 | G 3/4 | 191 | 124 | 12.5 | |
| NPH-43 | 105-023-10437 | 105-023-10446 | 197 | 130 | 13 | ||
| NPH-51 | 105-023-10517 | 105-023-10526 | 202 | 130.5 | 13.5 | ||
| NPH-61 | 105-023-10615 | 105-023-10624 | G 1 | 208 | 136.5 | 14 | |
| NPH-73 | 105-023-10731 | 105-023-10740 | 216 | 135.5 | 14.5 | ||
| NPH-82 | 105-023-10820 | 105-023-10839 | G1 1/4 | 221 | 142.5 | 14.9 | |
