Size | NG | A1VO 35 | ||
Geometric displacement, per revolution | Vg max Vg min | cm3 cm3 | 350 | |
Rotational speed, | at Vg max3) | nnom | rpm | 3000 |
maximum1)2) | at Vg ≤ Vg max4) | nmax | rpm | 3000 |
Flow at nnom and Vg max | qv | L/min | 105 | |
Power At nnom, Vg max and Δp = 250 bar | P | kW | 44 | |
Torque at Vg max and Δp = 250 bar | T | Nm | 139 | |

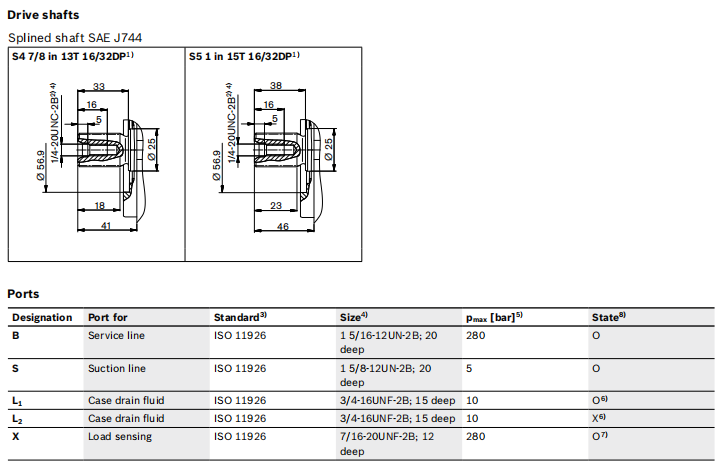

Rotary stiffness | Drive shaft S4 Drive shaft S5 | c | kNm/rad | 18.6 |
| | c | kNm/rad | 22.9 |
Moment of inertia for rotary group | JTW | kgm2 | 0.00159 | |
Angular acceleration, maximum5) | α | rad/s² | 5000 | |
Case volume | V | L | 0.6 | |
Weight (without through drive) approx. | m | kg | 16.9 | |
