Особенность

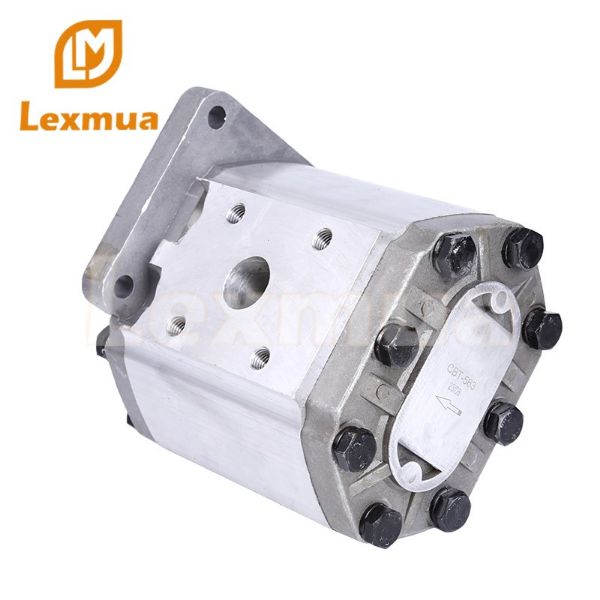

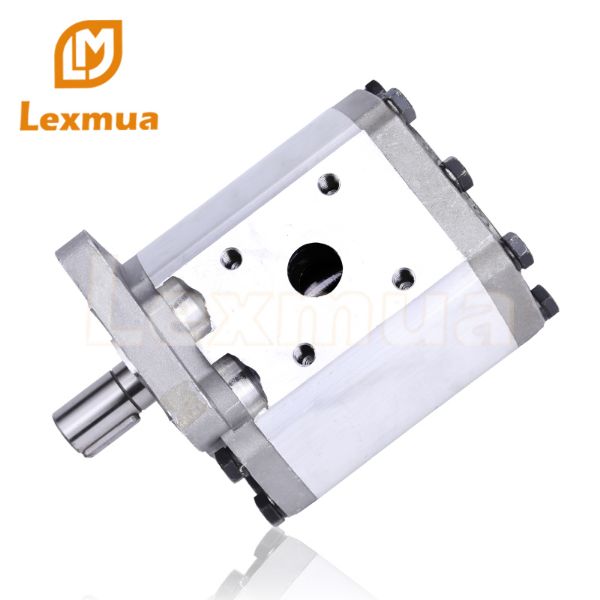

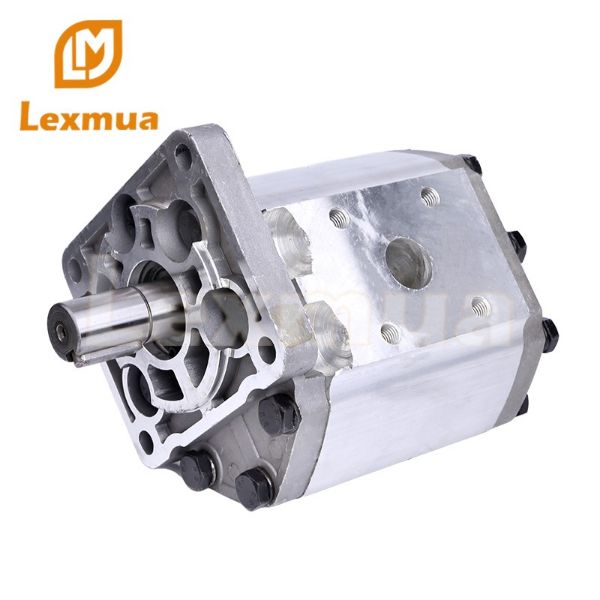

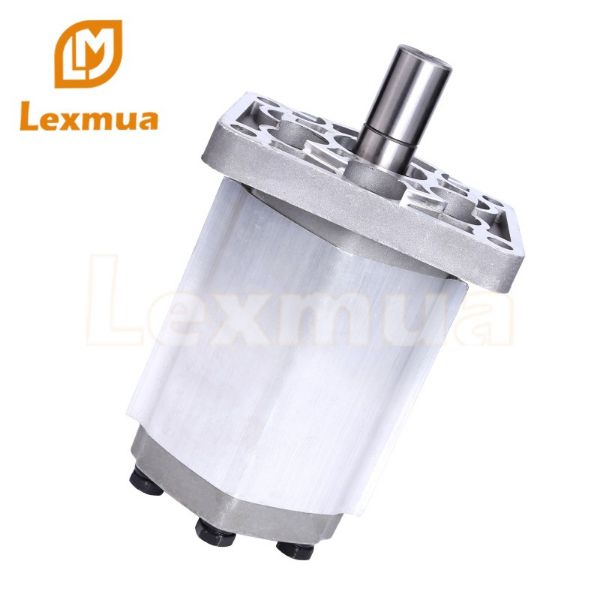

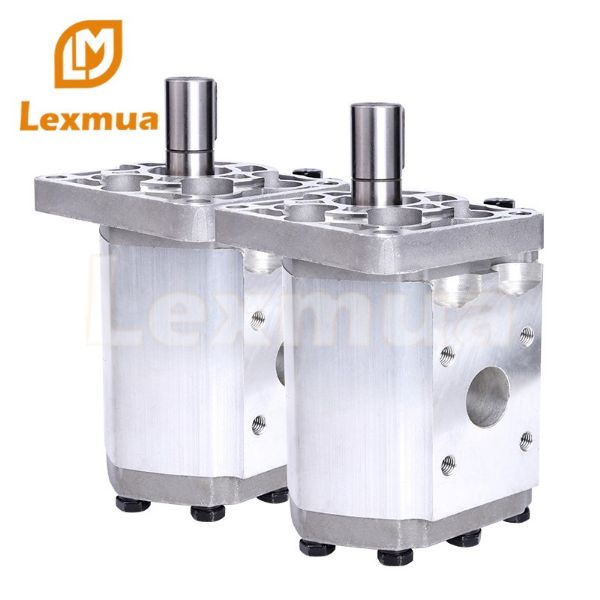

Силовой агрегат микрогидравлического шестеренчатого насоса CBT-F5 давление: 16-25 МПаОбъемный КПД гидравлического шестеренчатого насоса седельного тягача мощностью 25 МПа: 93>%
| Model | Nominal Displacement (ml/r) | Pressure (Wpa) | Speed (r/min) | A | B | C | * | D | M | ||||
| Rated | Highest | Rated | Record High | Minimum | Oil inlet | Oil outlet | |||||||
| CBT-F525 | 25 | 20 | 25 | 2000 | 3000 | 600 | 123 | 62 | 50 | 50 | 20 | 20 | M8 |
| CBT-F532 | 32 | 20 | 25 | 2000 | 3000 | 600 | 128 | 66 | 63 | 65 | 24 | 20 | M8 |
| CBT-F546 | 46 | 20 | 25 | 2000 | 3000 | 600 | 136 | 66 | 63 | 65 | 30 | 24 | M8/M10 |
| CBT-F550 | 50 | 20 | 25 | 2000 | 3000 | 600 | 141 | 71 | 73 | 76 | 30 | 24 | M8/M10 |
| CBT-F563 | 63 | 20 | 25 | 2000 | 3000 | 600 | 149 | 74 | 73 | 76 | 30 | 24 | M8/M10 |
| Specification | Rated Pressure | Speed | Displacement （ ml/r ） |
| CBT-F520-BT1HL | 20 | 2500 | 20 |
| CBT-F525-BT1HL | 20 | 2500 | 20 |
| CBT-F532-BFP | 20 | 2500 | 32 |
| CBT-F532-BFPL | 20 | 2500 | 32 |
| CBT-F532-BT1HL | 20 | 2500 | 32 |
| CBT-F532-BTH | 20 | 2500 | 32 |
| CBT-F532-BTHL | 20 | 2500 | 32 |
| CBT-F540-BFH | 20 | 2500 | 40 |
| CBT-F540-BFHL | 20 | 2500 | 40 |
| CBT-F540-BFP | 20 | 2500 | 40 |
| CBT-F540-BT1H | 20 | 2500 | 40 |
| CBT-F540-BT1HL | 20 | 2500 | 40 |
| CBT-F540-BTHL | 20 | 2500 | 40 |
| CBT-F550-BFH | 20 | 2500 | 50 |
| CBT-F550-BFHL | 20 | 2500 | 50 |
| CBT-F550-BFP | 20 | 2500 | 50 |
| CBT-F550-BFPL | 20 | 2500 | 50 |
| CBT-F550-BT1H | 20 | 2500 | 50 |
| CBT-F550-BT1HL | 20 | 2500 | 50 |
| CBT-F550-BTH | 20 | 2500 | 50 |
| CBT-F550-BTHL | 20 | 2500 | 50 |
| CBT-F563-BFH | 20 | 2500 | 63 |
| CBT-F563-BFHL | 20 | 2500 | 63 |
| CBT-F563-BFP | 20 | 2500 | 63 |
| CBT-F563-BFPL | 20 | 2500 | 63 |
| CBT-F563-BT1H | 20 | 2500 | 63 |
| CBT-F563-BT1HL | 20 | 2500 | 63 |
