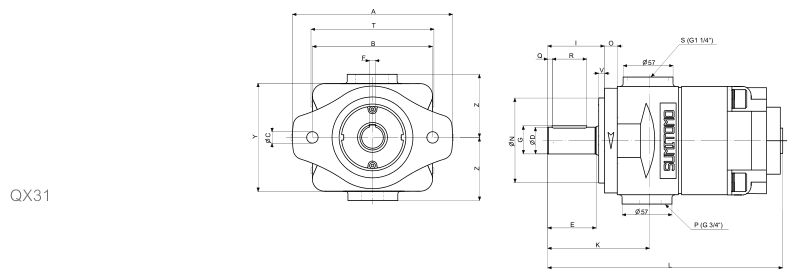

QX Шестеренчатый насос Размерная Диаграмма
Квалификация
Производитель гидравлических систем LEXMUA имеет множество сертификатов: ISO, FC, ROHS и т.д.
|
Model no. | Rated pressure MPa | Maximum pressure MPa | Capacity (l/min at rated pressure) | Driving power (kW) (at rated pressure, 1800 1/min) | Minimum/maximum rotational speed (1/min) | ||||
Rotational speed (1/min) | ||||||||||
1000 | 1200 | 1500 | 1800 | |||||||
QX31 | -20 |
9.8 (100) |
12.3 (125) | 17 | 21 | 27 | 33 | 6.9 |
1000–1800 | |
-25 | 22 | 27 | 35 | 42 | 8.6 | |||||
-31.5 | 28 | 34 | 44 | 53 | 10.6 | |||||
QX41 | -40 | 35 | 44 | 56 | 68 | 13.7 | ||||
-50 | 45 | 55 | 70 | 85 | 16.8 | |||||
-63 | 60 | 72 | 92 | 111 | 21.5 | |||||
QX51 | -80 | 70 | 86 | 109 | 133 | 25.9 | ||||
-100 | 93 | 113 | 143 | 174 | 33.1 | |||||
-125 | 119 | 144 | 182 | 220 | 41.3 | |||||
QX61 | -160 | 144 | 176 | 224 | 272 | 51.8 | ||||
-200 | 185 | 226 | 286 | 347 | 64.7 | |||||
-250 | 233 | 283 | 357 | 432 | 79.4 | |||||
