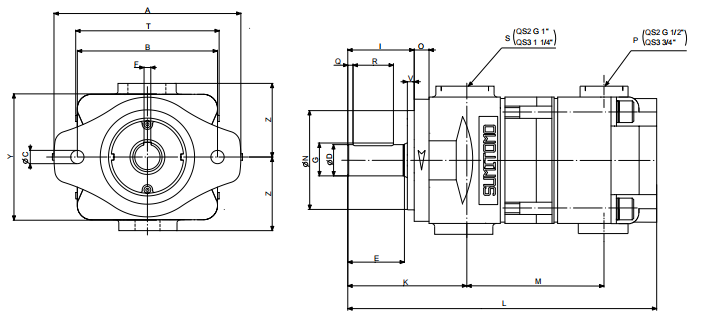

Размерная Диаграмма
Квалификация
Производитель гидравлических систем LEXMUA имеет множество сертификатов: ISO, FC, ROHS и т.д.
|
Model no. | Rated pressure | Maximum pressure MPa | Capacity (l/min at rated pressure) | Driving power (kW) (at rated pressure, 1800 1/min) | Minimum/maximum rotational speed (1/min) | |||||
Rot. speed (1/min) | MPa | Rotational speed (1/min) | |||||||||
1000 | 1200 | 1500 | 1800 | ||||||||
QX23 | -4 | 1500 | 15.7 (160) | 21.6 (220) |
|
| 5 | 6 | 3.1 | 1500–1800 | |
1800 | 20.6 (210) | 27.5 (280) | |||||||||
QX23 | -5 -6.3 -8 | 1000 | 11.8 (120) | 16.7 (170) |
|
| 6 8 11 | 8 10 13 | 4.6 5.5 6.9 |
1000–1800 | |
1200 | 14.7 (150) | 20.6 (210) | |||||||||
1500 | 24.5 (250) | 31.4 (320) | |||||||||
1800 | 24.5 (250) | 31.4 (320) | |||||||||
QX33 | -10 |
24.5 (250) |
31.4 (320) | 8 | 10 | 13 | 16 | 8.3 | |||
-12.5 | 10 | 13 | 17 | 21 | 10.4 | ||||||
-16 | 13 | 16 | 21 | 26 | 12.8 | ||||||
QX43 | -20 | 17 | 22 | 28 | 34 | 13.6 | |||||
-25 | 22 | 27 | 35 | 43 | 20.4 | ||||||
-31.5 | 29 | 36 | 46 | 56 | 26.2 | ||||||
QX53 | -40 | 34 | 42 | 55 | 67 | 31.6 | |||||
-50 | 46 | 56 | 72 | 87 | 40.6 | ||||||
-63 | 59 | 72 | 91 | 110 | 50.8 | ||||||
QX63 | -80 | 70 | 87 | 111 | 136 | 63.9 | |||||
-100 | 91 | 112 | 142 | 173 | 80.1 | ||||||
-125 | 115 | 140 | 178 | 216 | 98.6 | ||||||
