Подходит для широкого спектра гидравлических жидкостей

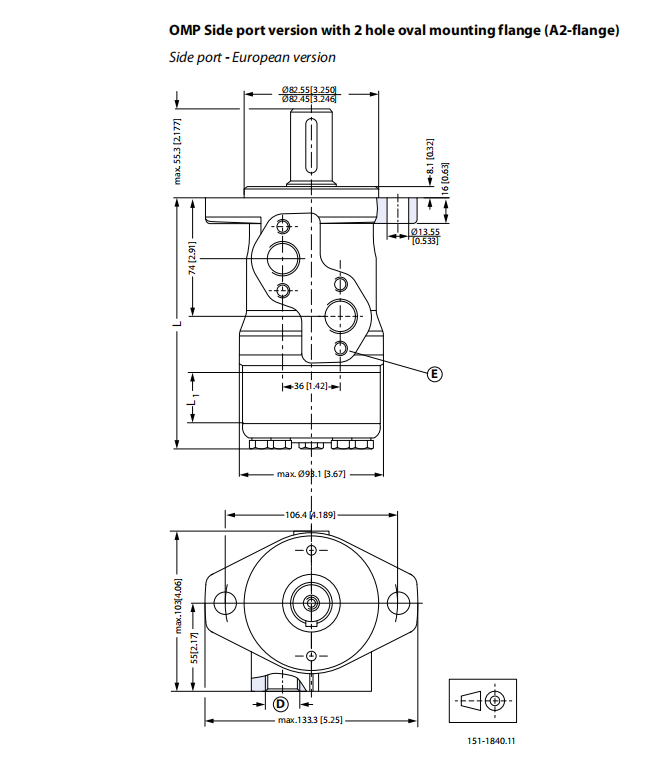

Размерная Диаграмма
Type | OMP | OMP | OMP | OMP | OMP | OMP | ||
Motor size | 25 | 32 | 40 | 50 | 80 | 100 | ||
Geometric displacement | cm3 [inch] | 25.0 [1.53] | 32.0 [1.96] | 40.0 [2.45] | 48.6 [2.97] | 77.8 [4.76] | 97.3 [5.95] | |
Max. speed | min- 1 | cont. | 1600 | 1560 | 1500 | 1230 | 770 | 615 |
[rpm] | int.1) | 1800 | 1720 | 1750 | 1540 | 960 | 770 | |
Max. torque | N• m [lbf•in] | cont. | 33 [290] | 43 [380] | 52 [460] | 93 [820] | 150 [1330] | 190 [1680] |
int.1) | 47 [420] | 61 [540] | 74 [660] | 120 [1060] | 190 [1680] | 230 [2040] | ||
Max. output | kW [hp] | cont. | 4.5 [6.0 | 5.8 [7.8] | 7.0 [9.4] | 10.0 [13.4] | 10.0 [13.4] | 11.0 [14.8] |
int.1) | 6.1 [8.2] | 7.8 [10.5] | 10.6 [14.2] | 12.0 [16. 1] | 12.0 [16. 1] | 13.0 [17.4] | ||
Max. pressure drop | bar [psi] | cont. | 100 [1450] | 100 [1450] | 100 [1450] | 140 [2030] | 140 [2030] | 140 [2030] |
int.1) | 140 [2030] | 140 [2030] | 140 [2030] | 175 [2540] | 175 [2540] | 175 [2540] | ||
peak2) | 225 [3260] | 225 [3260] | 225 [3260] | 225 [3260] | 225 [3260] | 225 [3260] | ||
Max. oil flow | l/min [US gal/min] | cont. | 40 [10.6] | 50 [13.2] | 60 [15.9] | 60 [15.9] | 60 [15.9] | 60 [15.9] |
int.1) | 45 [11.9] | 55 [14.5] | 70 [18.5] | 75 [19.8] | 75 [19.8] | 75 [19.8] | ||
Max. starting pressure with unloaded shaft | bar [psi] | standard | 10 [145] | 10 [145] | 10 [145] | 10 [145] | 10 [145] | 10 [145] |
|
| free running gerotor | - | - | - | - | - | 2 [29] |
Min starting torque | at max. press drop cont. N• m [lbf•in] | 30 [270] | 40 [350] | 45 [400] | 80 [710] | 135 [1200] | 170 [1510] | |
at max. press.drop int.1) N• m [lbf•in] | 40 [350] | 55 [490] | 63 [560] | 100 [890] | 170 [1510] | 210 [1860] | ||
