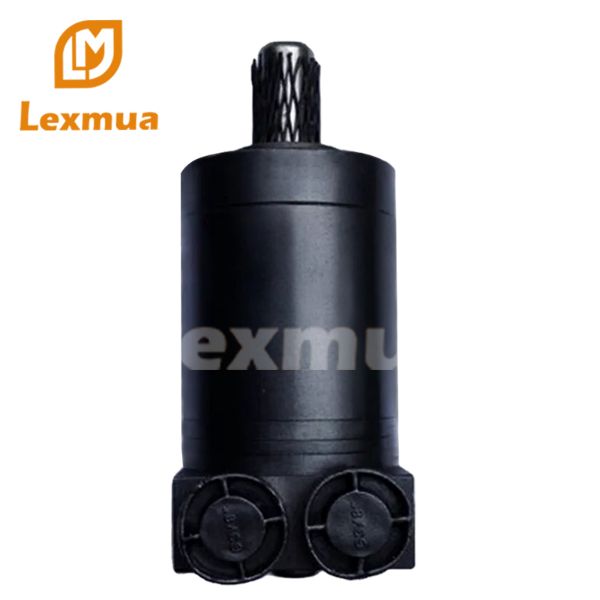

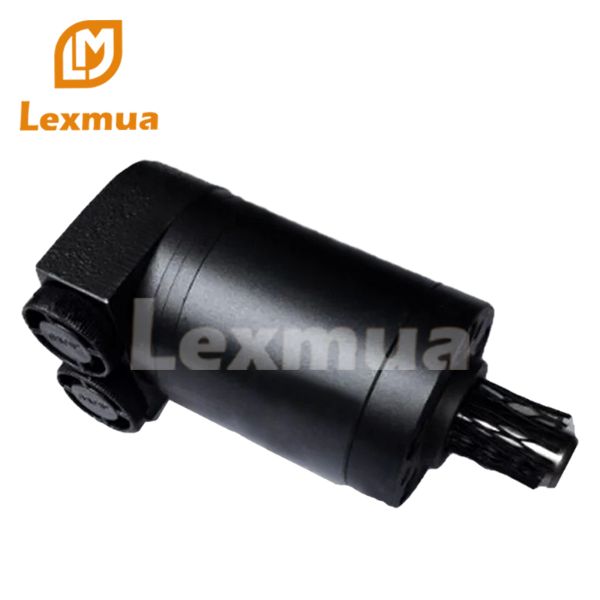

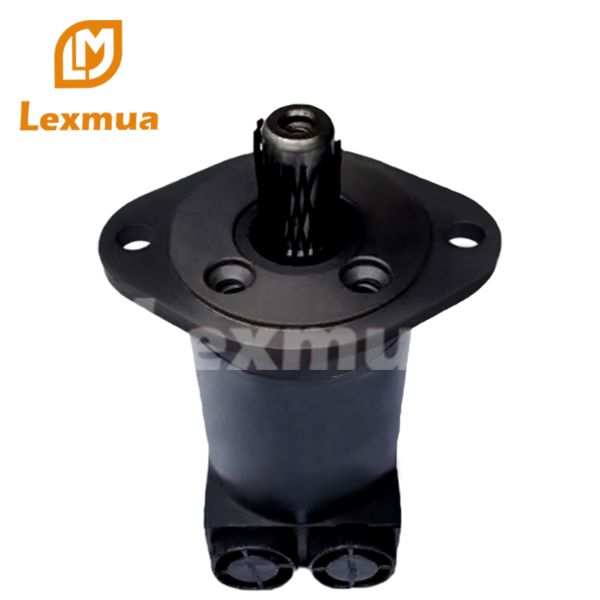

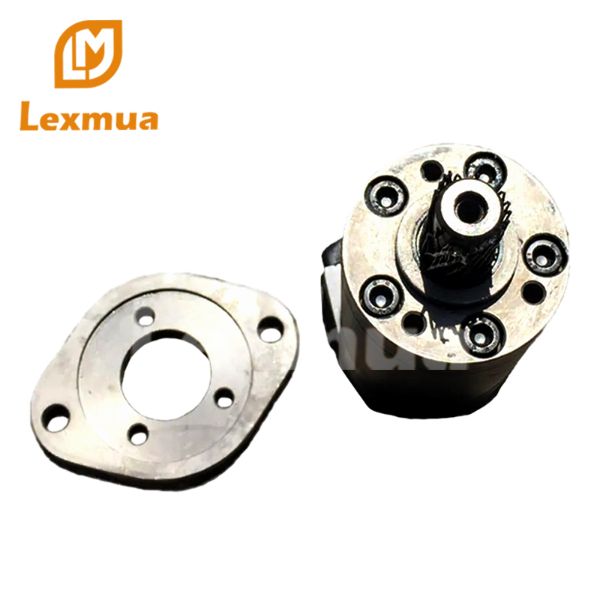

Danfoss OMM Героторные гидромоторы
Type | OMM | OMM | OMM | OMM | OMM | OMM | ||
Motor size | 8 | 12.5 | 20 | 32 | 40 | 50 | ||
Geometric displacement | cm³ [in³] | 8.2 [0.50] | 12.5 [0.77] | 19.9 [1.22] | 31.6 [1.93] | 39.8 [2.43] | 50 [3.08] | |
Max. speed | min-1 | cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 |
[rpm] | int.1) | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
Max. torque | Nm [lbf•in] | cont. | 11 [95] | 16 [140] | 25 [220] | 40 [350] | 45 [400] | 46 [410] |
int.1) | 15 [135] | 23 [200] | 35 [310] | 57 [500] | 70 [620] | 88 [780] | ||
Max. output | kW [hp] | cont. | 1.8 [2.4] | 2.4 [3.2] | 2.4 [3.2] | 2.4 [3.2] | 2.2 [3.0] | 1.8 [2.4] |
int.1) | 2.6 [3.5] | 3.2 [4.3] | 3.2 [4.3] | 3.2 [4.3] | 3.2 [4.3] | 3.2 [4.3] | ||
Max. pressure drop | bar [psi] | cont. | 100 [1450] | 100 [1450] | 100 [1450] | 100 [1450] | 90 [1310] | 70 [1020] |
int.1) | 140 [2030] | 140 [2030] | 140 [2030] | 140 [2030] | 140 [2030] | 140 [2030] | ||
peak2) | 200 [2900] | 200 [2900] | 200 [2900] | 160 [2320] | 160 [2320] | 160 [2320] | ||
Max. oil flow | l/min [USgal/min] | cont. | 16 [4.2] | 20 [5.3] | 20 [5.3] | 20 [5.3] | 20 [5.3] | 20 [5.3] |
int.1) | 20 [5.3] | 25 [6.6] | 25 [6.6] | 25 [6.6] | 25 [6.6] | 25 [6.6] | ||
Max. starting pressure with unloaded shaft | bar [psi] | 4 [60] | 4 [60] | 4 [60] | 4 [60] | 4 [60] | 4 [60] | |
Min. starting torque | at max. press. drop cont. Nm [lbf•in] | 7 [60] | 12 [105] | 21 [185] | 34 [300] | 38 [335] | 41 [365] | |
at max. press. drop int.1) Nm [lbf•in] | 10 [90] | 17 [150] | 29 [255] | 48 [425] | 62 [550] | 79 [700] | ||
Min. speed3) | min-1 [rpm] | 50 | 40 | 30 | 30 | 30 | 30 | |
