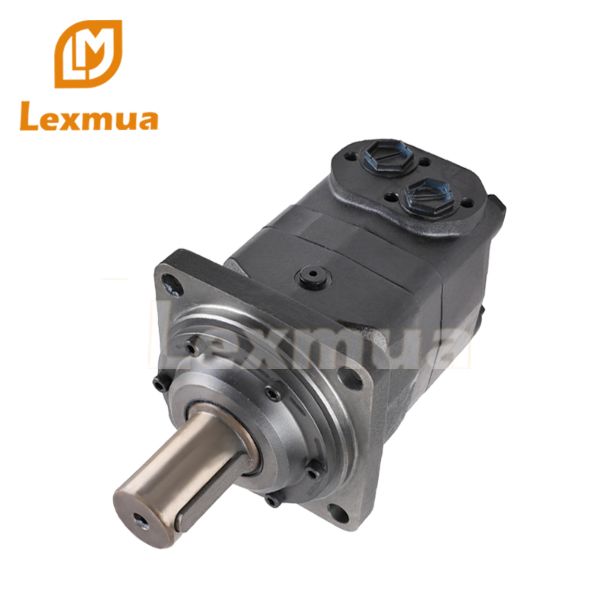

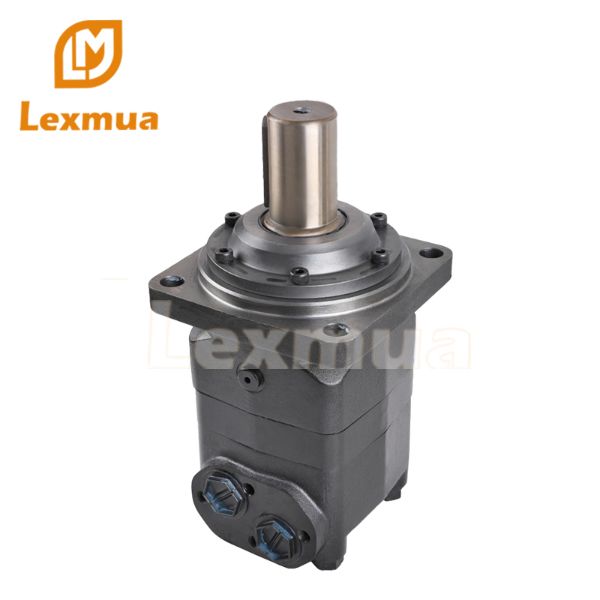

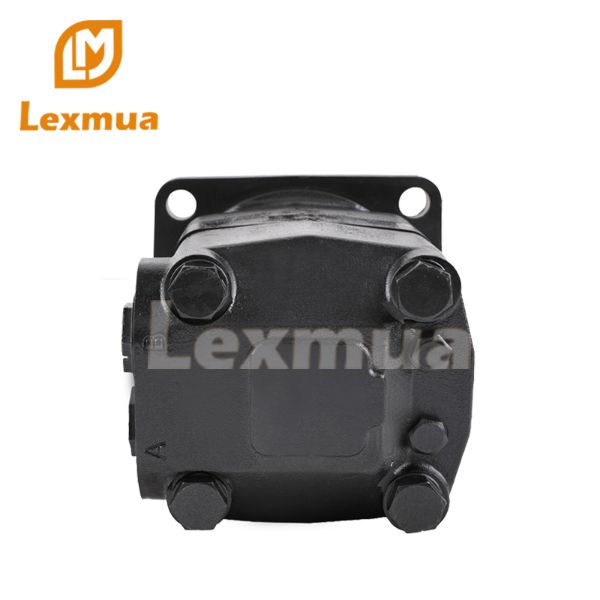

OMV 315,OMV 400,OMV 500,OMV 630,OMV 800
Type | OMV OMVW OMVS | OMV OMVW OMVS | OMV OMVW OMVS | OMV OMVW OMVS | OMV OMVW OMVS | ||
Motor size | 315 | 400 | 500 | 630 | 800 | ||
Geometric displacement | cm³ [in³] |
| 314.5 [19.19] | 400.9 [24.46] | 499.6 [30.49] | 629.1 [38.39] | 801.8 [48.93] |
Max. speed | min-1 [rpm] | cont. | 510 | 500 | 400 | 315 | 250 |
int1) | 630 | 600 | 480 | 380 | 300 | ||
Max. torque | Nm [lbf·in] | cont. | 920 [8140] | 1180 [10440] | 1460 [12920] | 1660 [14690] | 1880 [16640] |
int.1) | 1110 [9820] | 1410 [12480] | 1760 [15580] | 1940 [17170] | 2110 [18680] | ||
Max. output | kW [hp] | cont. | 42.5 [57.0] | 53.5 [71.7] | 53.5 [71.7] | 48.0 [64.4] | 42.5 [57.0] |
int.1) | 51.0 [68.4] | 64.0 [85.8] | 64.0 [85.8] | 56.0 [75.1] | 48.0 [64.4] | ||
Max. pressure drop | bar [psi] | cont. | 200 [2900] | 200 [2900] | 200 [2900] | 180 [2610] | 160 [2320] |
int.1) | 240 [3480] | 240 [3480] | 240 [3480] | 210 [3050] | 180 [2610] | ||
peak2) | 280 [4060] | 280 [4060] | 280 [4060] | 240 [3480] | 210 [3050] | ||
Max. oil flow | l/min [USgal/ min] | cont. | 160 [42.3] | 200 [52.8] | 200 [52.8] | 200 [52.8] | 200 [52.8] |
int.1) | 200 [52.8] | 240 [63.4] | 240 [63.4] | 240 [63.4] | 240 [63.4] | ||
Max. starting pressure with unloaded shaft | bar [psi] |
| 8 [116] | 8 [116] | 8 [116] | 8 [116] | 8 [116] |
Min. starting torque | at max. press. drop cont. Nm [lbf·in] | 710 [6280] | 910 [8050] | 1130 [10000] | 1330 [11770] | 1510 [13360] | |
at max. press. drop int.1) Nm [lbf·in] | 850 [7520] | 1090 [9650] | 1360 [12040] | 1550 [13720] | 1700 [15050] | ||
